Portable dual stage rotary vane vacuum pump VP250

FOB Price:

USD 30-120 / Piece

Min.Order Quantity:

50 Twenty-Foot Container

Supply Ability:

10000 Twenty-Foot Container per Month

Port:

Ningbo/Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C, T/T

Brand:

Aitcool

Products Model:

VP250

Products Details
Company Profile

Quick Details

Brand Name: Aitcool

Model Number: VP250

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: carton/wooden case/pallet
Delivery Detail: according to the order

Specifications

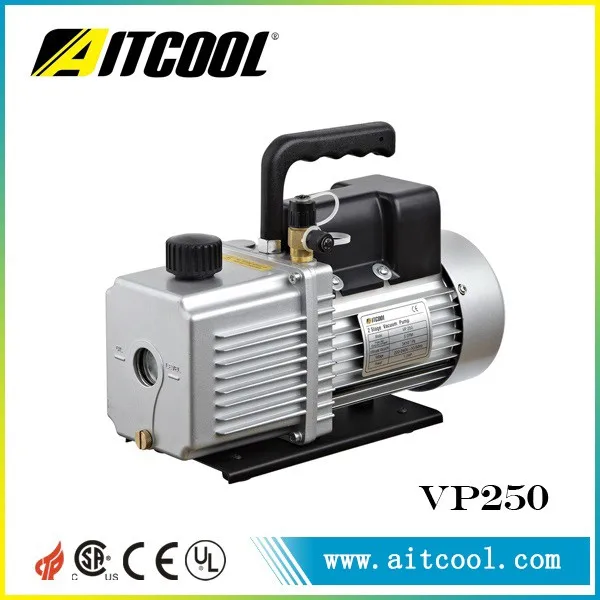

Portable oil sealed two stage rotary vane vacuum pump VP250, designed for HVAC/R

Models		VP250
Flow Rate	50Hz	4.5CFM
	60Hz	5.0CFM
Ultimate Vacuum	Partial Pressure	2x10¯¹ Pa
	Total pressure	15 microns
Stage		2
Power		1/2HP
Inlet Port		1/4"&3/8"SAE
Oil Capacity		350ml
Dimensions		320 x125 x232mm
Weight		8.6kg

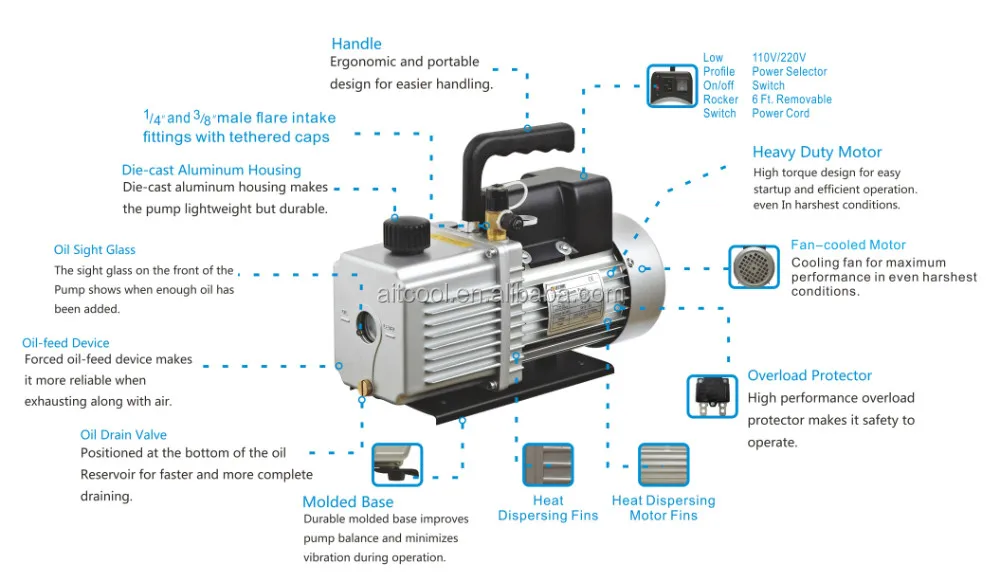

1. Designed specially for HVAC/R service

2. Ultimate deep vacuum: single stage is 5PA, while dual stage is 0.3 Pa

3. Compact design with aluminum housing and easy to carry.

4. Thermal protector in the motor to guarantee the pump to run steadily.

5. Both 1/4' and 3/8' SAE flare inlet connections allow for flexibility of connections.

6. Vacuum pump oil included.

7. Suitable for all the main voltage design in the market.

8. Individual design for special customers.

AITCOOL, founded in 2007, is a professional national high-tech enterprise, specializing in researching, developing and manufacturing refrigeration tools for HVAC/R, with an annual capacity of 30,000 refrigerant recovery machines and 200,000 rotary-vane vacuum pumps at present. AITCOOL has the most professional mechanical, electrical, refrigerating senior engineers.

In March 2008, AITCOOL achieved the invention patent of refrigerant recovery machine;
In October 2008, our refrigerant recovery machine project was approved by Ministry of national science and technique.
In October 2010, AITCOOL was honored as national High-Tech enterprise;
In September 2011, our automatic refrigerant recovery machine project was approved by National Economic Commission.

The high quality and advanced technology and the joint efforts of all our colleagues guarantee our healthy development. All products have obtained China patents and got European CE and American UL certificates, etc., and also achieved ISO9001 certificate. Our products are exported to more than forty countries and regions, including the USA, South America, the EU, Australia, Southeast Asia, the Middle East, Japan, etc. Our products with high quality and competitive price are your best choice.
